Meterial
|
|
FEATURES：
·PIPE THREAD IN ACCORDANCE：NPT，BSPT，
DIN258，DIN2999，ISO228CLASSA
·TEMPREATURE RANGE：-20℃~232℃~350℃
·SUITABLE MEDIUM：WATER，OIL，AIR AND
SOME CORROSIVE LIQUID
·BLOW-OUT PROOF STEM/FULL PORT
·INVESTMENT CASTING BODY
·1000PSI（PN63）W.O.G
·WITH ISO 5211 MOUNTING PAD

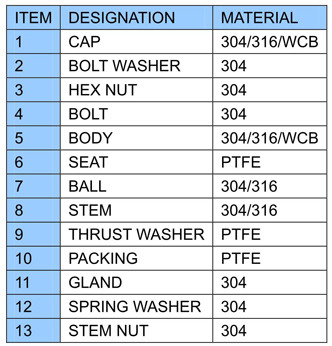

·MATERIAL：
S45C/ASTM A216GR-WCB/DIN1.0619
SS316/ASTM A351GR-CF8M/DIN1.4408
|
 |

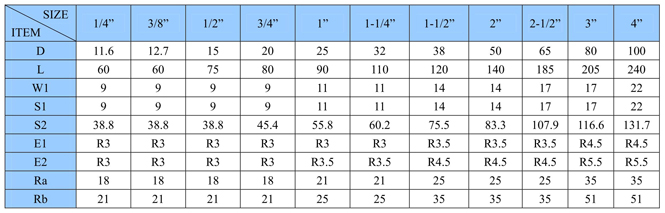

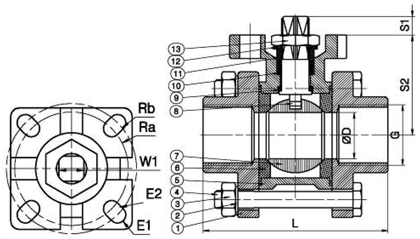

Dimension
 |
聲明：本文中所有文字、數據、圖片均只適用于參考，Q11F 型 PN16~PN63 浮動軟密封球閥性能參數、結構尺寸參數、價格等詳情，請聯系我們，電話：0577-86810770
